Extends Item

Apple.Segmented

An iOS segmented control.

Apple.Segmented {
    Apple.Segmented.Segment {
        label: "Paid"
    }
    Apple.Segmented.Segment {
        label: "Free"
    }
    Apple.Segmented.Segment {
        label: "Top Grossing"
    }
}

Adding and removing segments

As shown above, each inline child Apple.Segmented.Segment automatically becomes a segment in the control.

To add and remove additional segments using code, call the Apple.Segmented.addSegment() and Apple.Segmented.removeSegment() methods.

A segment can only be added to one Apple.Segmented control. If you add a segment that is being used by another control, it will be removed from that control first.

property Int selected: 0

The currently selected segment.

property Apple.Segmented.Style style: .Default

Apple.Segmented.Style.Default

An iOS 13 and later style segmented control.

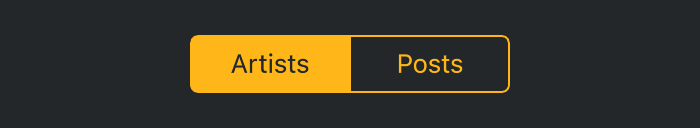

Apple.Segmented.Style.Outline

An outline style segmented control.

property Color tint

property Color labelColor

property Color backgroundColor

The tint, labelColor and backgroundColor properties control the element's colors.

Apple.Segmented {
    style: .Outline
    tint: #FEB619
}

property String font: "San Francisco"

property Float size: 13

Set the font and font size used by the segmented control.

property Array<Apple.Segmented.Segment> segmentsread only

The list of segments in this control.

function addSegment(Apple.Segmented.Segment segment)

function removeSegment(Apple.Segmented.Segment segment)

Add or remove a segment to the control.

A segment can only be added to one Apple.Segmented control. If you add a segment that is being used by another control, it will be removed from that control first.
